Connector Part Numbers
* ATTENTION: Layout with color codes is true when looking at the REAR of connectors.
* Clicking on a column name will sort the table.

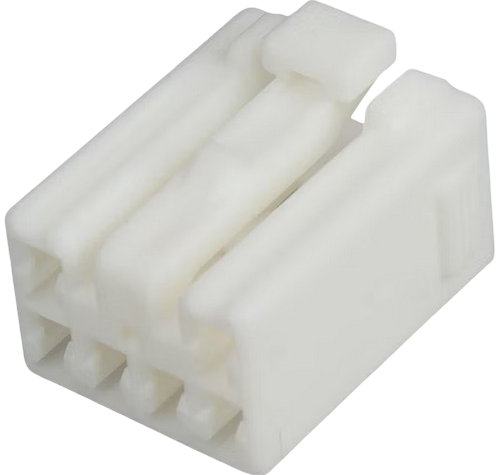

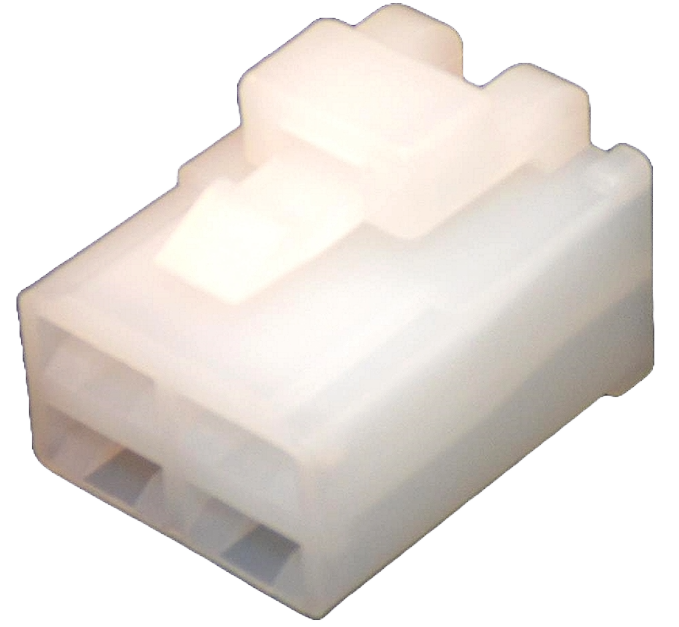

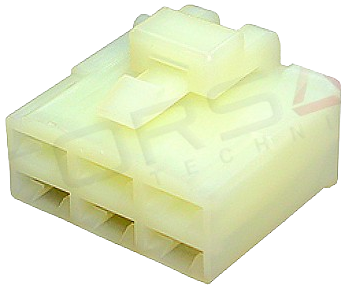

| Connector Id | Harness | Description | Part No. | Pic | Layout |
|---|---|---|---|---|---|
| - ECU header | PCB through-hole | 174915 |  |  | |

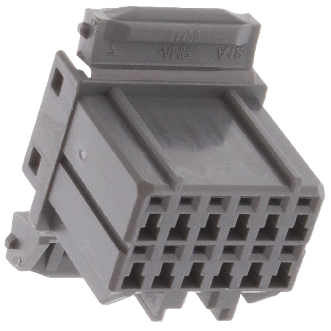

| B1-01 (12 pin) | (F) | ECU connector | 174913, 917975 |  | .png) |
| B1-01 (16 pin) | (EM) | ECU connector | 174514, 917981 |  | .png) |

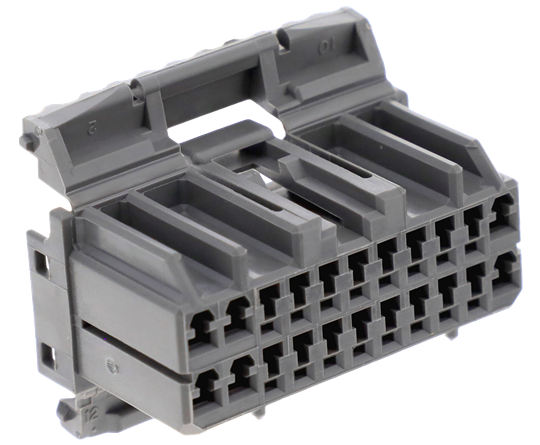

| B1-01 (22 pin) | (F) | ECU connector | 174515, 917989 |  | .png) |
| B1-01 (26 pin) | (EM) | ECU connector | 174516, 917992, 368136 |  | .png) |
| B1-07 | (EM) | Air pump (magnetic clutch) | 6195-0006 |  |  |

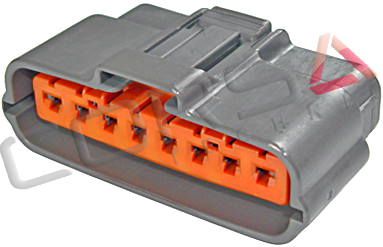

| B1-09 | (F) | Igniter connector | 6195-0038 (DL090-8S) |  |  |
| B1-15 | (EM) | Front primary injector | 6195-0043 (DL090-2S-2) |  |  |
| B1-16 | (EM) | Rear primary injector | 6195-0043 (DL090-2S-2) | |  |
| B1-17 | (EM) | Front secondary injector | 6195-0043 (DL090-2S-2) | |  |
| B1-18 | (EM) | Rear secondary injector | 6195-0043 (DL090-2S-2) | |  |
| B1-22 | (EM) | Fuel thermosensor | 178449-6, 184006-2 |  |  |

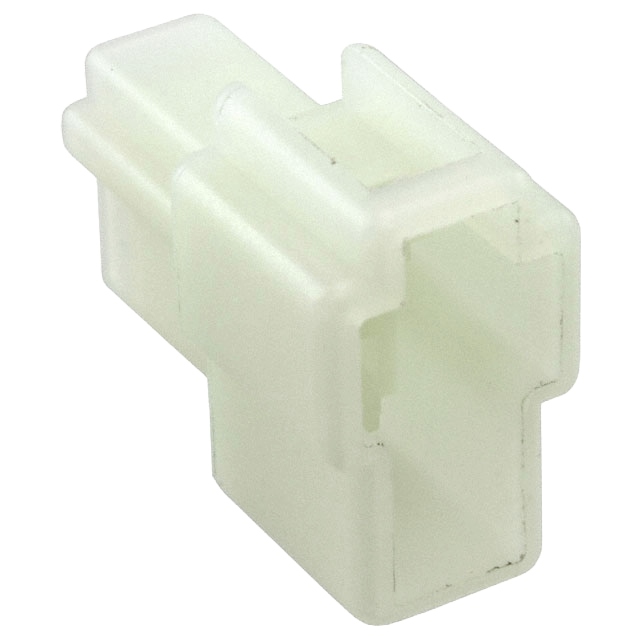

| B1-23 | (EM) | Split air bypass solenoid valve | 172129-1 |  |  |

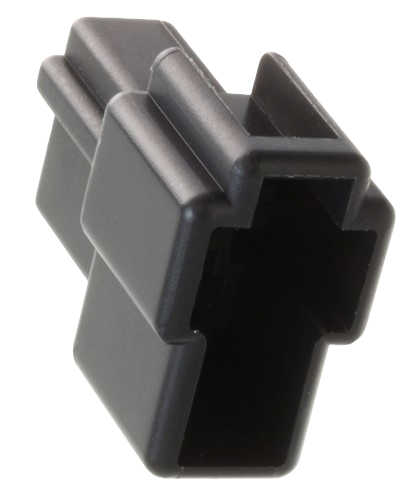

| B1-24 | (EM) | Relief 2 solenoid valve | 172129-2 |  |  |

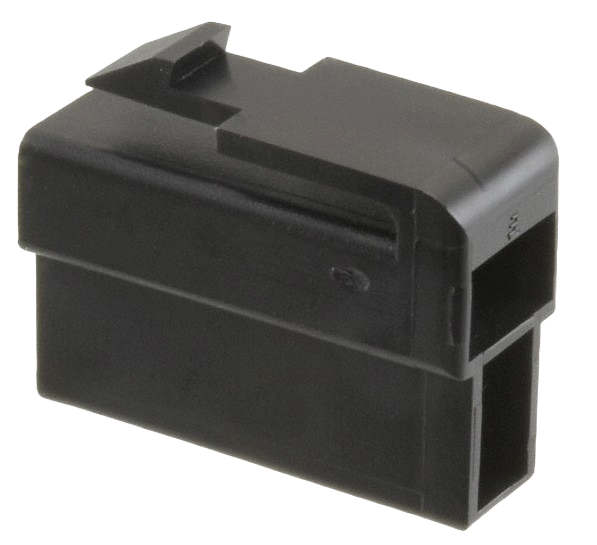

| B1-25 | (EM) | Port air bypass solenoid valve | 172130-2 |  |  |

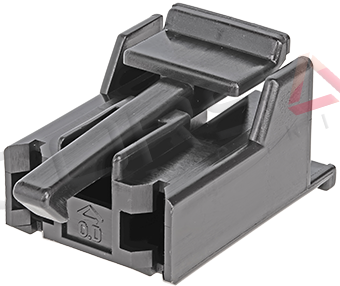

| B1-26 | (EM) | PRC solenoid valve | 11404-1102 (Furukawa) |  |  |
| B1-27 | (EM) | Secondary air bypass valve | 11404-1102 (Furukawa) | |  |
| B1-28 | (EM) | Secondary air switching valve | 11404-1102 (Furukawa) | |  |
| B1-29 | (EM) | EGR solenoid valve | 11404-1102 (Furukawa) | |  |
| B1-30 | (EM) | Turbo control solenoid valve | 11404-1102 (Furukawa) | |  |
| B1-31 | (EM) | Turbo control 2 solenoid valve | 174352 |  |  |
| B1-32 | (EM) | Charge control solenoid valve | 11404-1102 (Furukawa) | |  |
| B1-33 | (EM) | Double throttle control solenoid valve | 11404-1102 (Furukawa) | |  |
| B1-34 | (EM) | Charge relief solenoid valve | 11404-1102 (Furukawa) | |  |
| B1-35 | (EM) | Idle air control valve | 7223-1324 |  |  |
| B1-36 | (EM) | AWS solenoid valve | 6195-0062 (TS090-2S-1) |  |  |
| B1-37 | (EM) | Turbo precontrol solenoid valve | 174352 | |  |
| B1-38 | (EM) | Wastegate control solenoid valve | 174352 | |  |
| B1-39 | (EM) | Purge solenoid valve | 174352 | |  |
| B1-40 | (EM) | Oil metering pump | 2822395, 174655 |  |  |
| B1-41 | (EM) | Engine coolant temperature sensor | 178449-4, 184006-1 |  |  |
| B1-42 | (EM) | Intake Air sensor | 174352 | |  |
| B1-43 | (EM) | Throttle position sensor | 6195-0030 (DL090-4S-2) |  |  |
| B1-44 | (EM) | EGR function sensor | 6195-0003 |  |  |

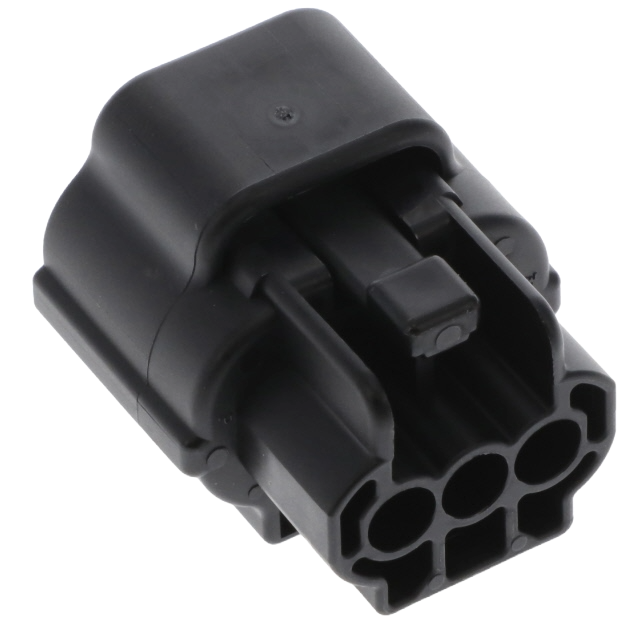

| B1-45 | (F) | MAP sensor | 174357 |  |  |
| B1-46 | (EM) | Knock sensor | 2822388, 174877 |  |  |
| B1-47 | (EM) | Oxygen sensor | 2822388, 174877 | |  |
| B1-48 | (EM) | Crank position sensor (G) | 6195-0003 | |  |
| B1-49 | (EM) | Crank position sensor (NE) | 6195-0003 | |  |
| B1-50 | (EM) | Neutral switch (transmission) | 6195-0006 | |  |
| B1-51 | (EM) | 1-2 Switch (on transmission) | 174259-2 |  |  |
| B2-07 | (EM) | Fan thermoswitch | 90980-10197 |  |  |
| C1-04 | (EM) | Water temp sensor (meter) | 172320 |  |  |
| C1-06 | (EM) | Coolant level disconnect with (E) | 172128 |  |  |
| C1-07 | (EM) | Coolant level sensor | 172127 |  |  |
| C1-08 | (EM) | Vehicle speedometer sensor (transmission) | 6195-0003 | |  |
| F3-03 | (EM) | Backup light switch (transmission) | 174354 |  |  |

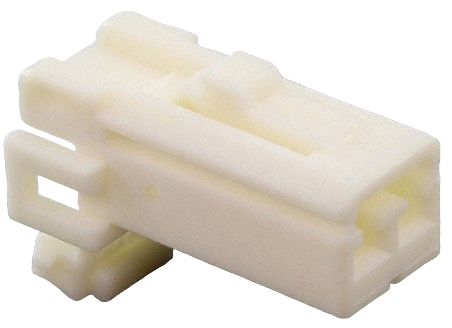

| J2-07 | (I) | Bose Center speaker | 368538 |  |  |

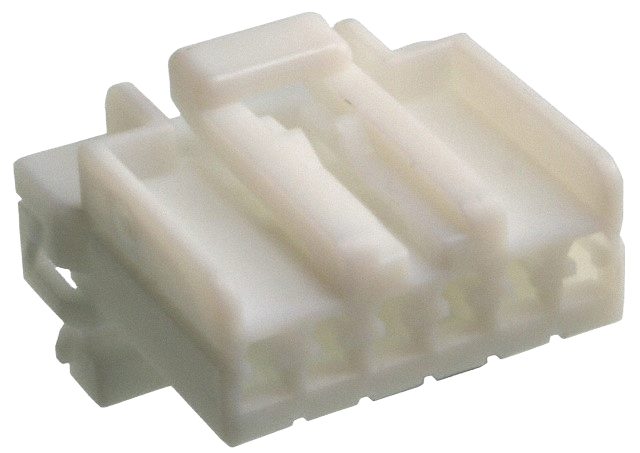

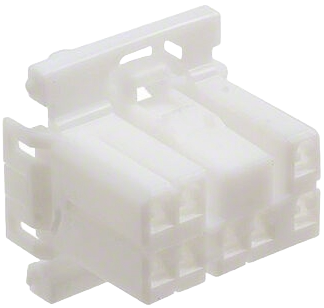

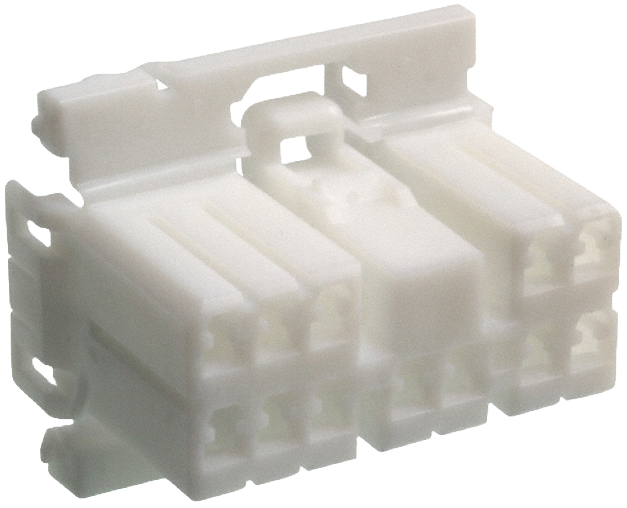

| Q-02 | (F) | Cruise control main switch illumination | 174923-1 |  |  |
| Q-04 | (F) | Cruise control motor | 174259-2 | |  |
| X-05 | (F)-(EM) | Harness connector between Front and Emission (blue) | 174465 (EM), 176114 (EM) |  |  |
| X-14 | (EM)-(D) | Harness connector between Emission and Dash (white) | 173852 (EM), 176117 (EM) |  |  |
