(EM) Harness Diagram and Cutouts
Wire lengths in relation to either of B1-01, X-05 or X-14 connectors for a single-turbo (EM) harness.
Lengths are apporximate. Have your wire cutouts longer than mentioned here, just in case.
| Connector | Description | Length (inch) | Part No. | Pic | Layout | Notes |
|---|---|---|---|---|---|---|

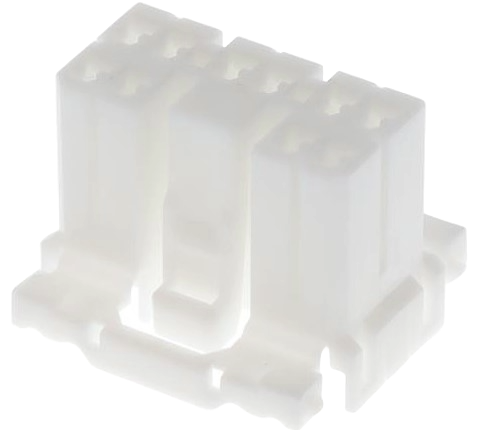

| X-05 | Harness connector between Front and Emission (blue) | 9.5 | 174465 (EM), 176114 (EM) |  |  | B/W, B/Y and B/G are 18awg |

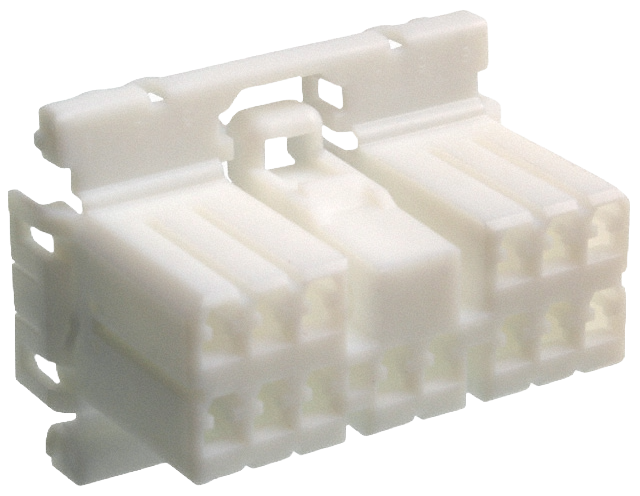

| X-14 | Harness connector between Emission and Dash (white) | 19.5 | 173852 (EM), 176117 (EM) |  |  | B is 18awg |

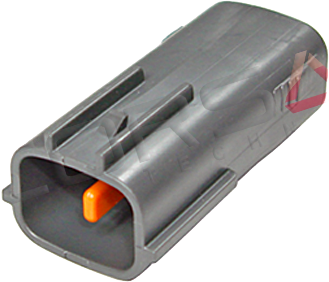

| B1-50 | Neutral switch (transmission) | 70 | 6195-0006 |  |  | |

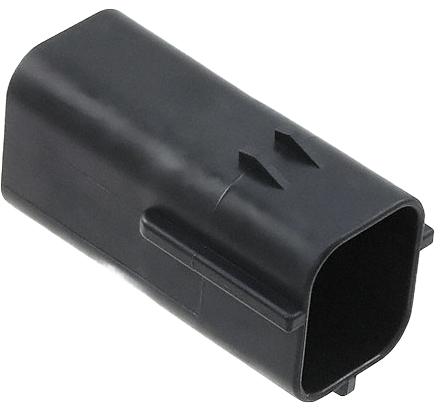

| B1-51 | 1-2 Switch (on transmission) | 70 | 174259-2 |  |  | |

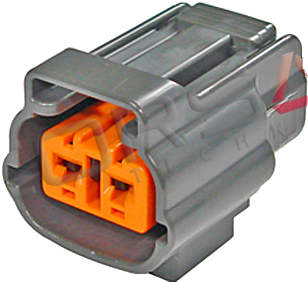

| C1-08 | Vehicle speedometer sensor (transmission) | 70 | 6195-0003 |  |  | |

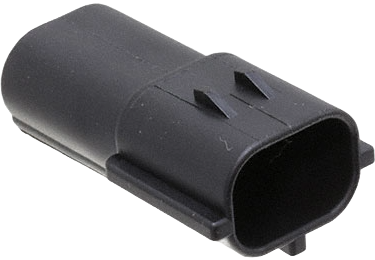

| F3-03 | Backup light switch (transmission) | 70 | 174354 |  |  | |

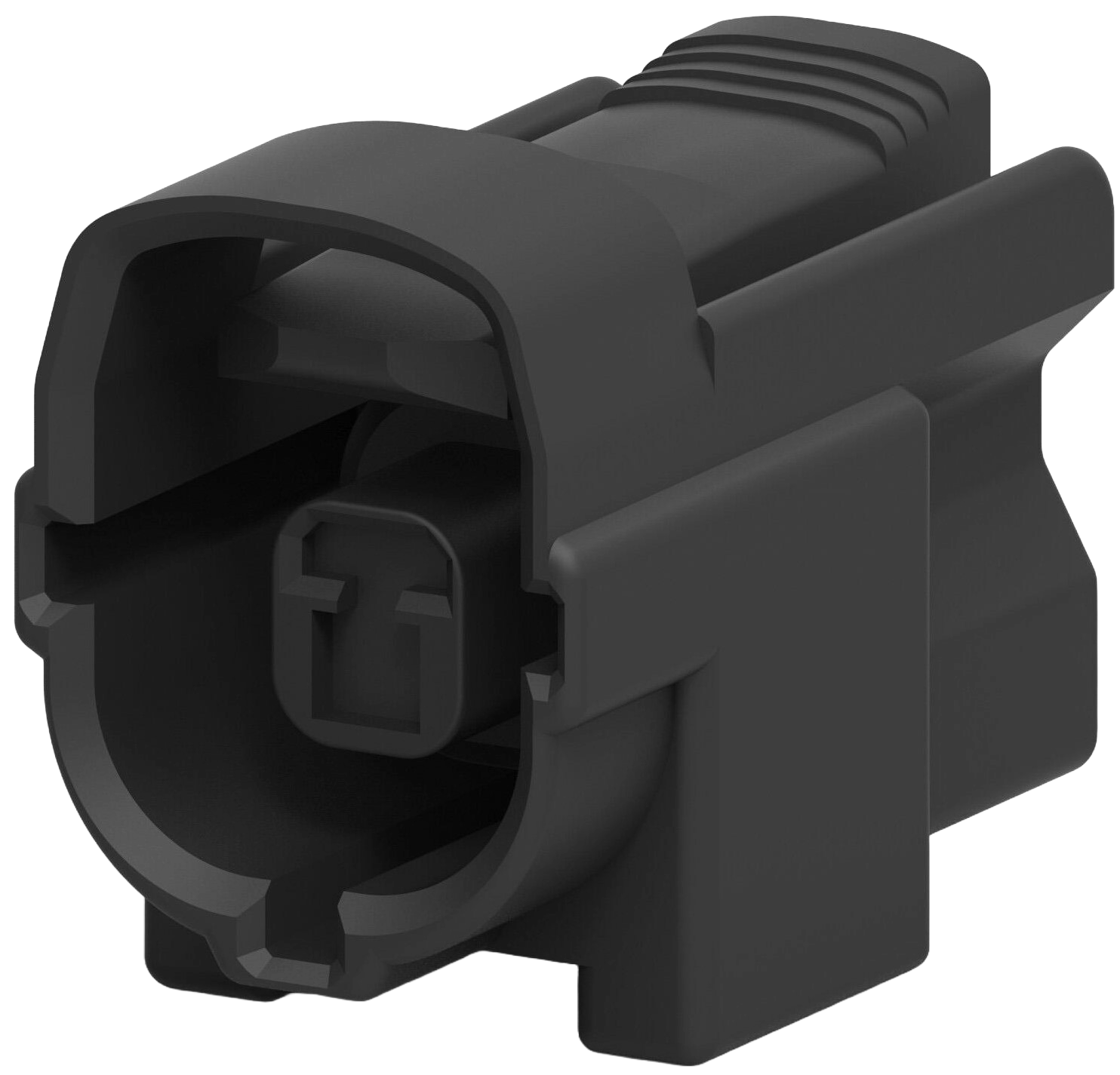

| B1-47 | Oxygen sensor | 42 | 2822388, 174877 |  |  | Shielded |

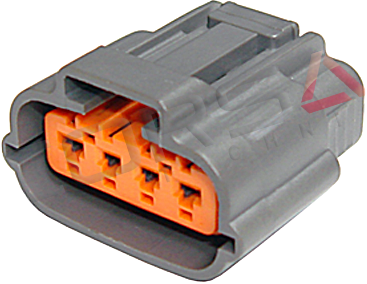

| B1-43 | Throttle position sensor | 44.2 | 6195-0030 (DL090-4S-2) |  |  | BR/B splices off BR/B of B1-01; BR/W splices off BR/W of B1-01 |

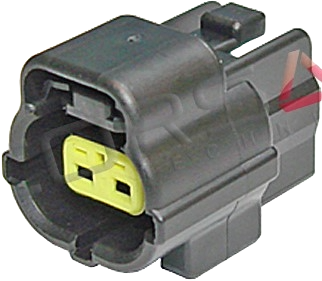

| B1-42 | Intake Air sensor | 42 | 174352 |  |  | BR/B splices off BR/B of B1-01 |
| B1-35 | Idle air control valve | 40.7 | 7223-1324 |  |  | B/W splices off B/W of X-05 |

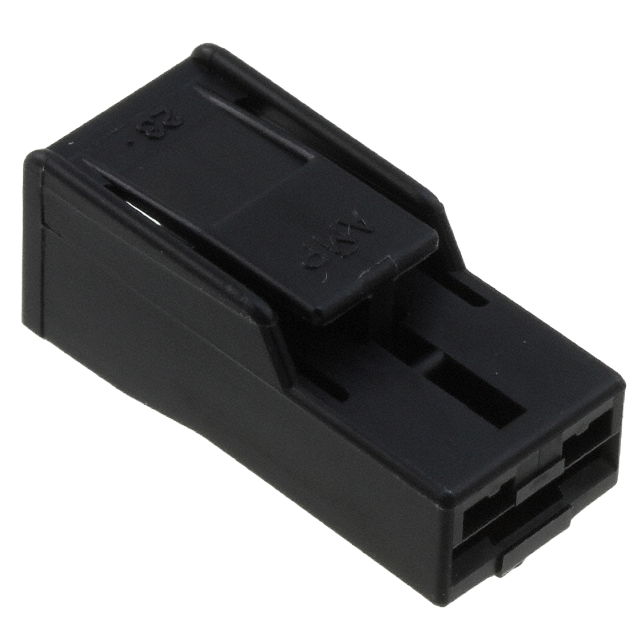

| C1-04 | Water temp sensor (meter) | 45.7 | 172320 |  |  | |

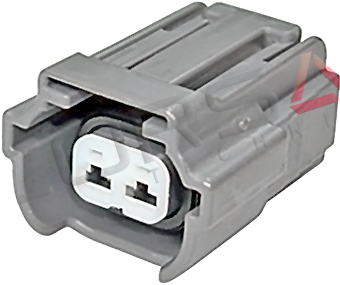

| B1-18 | Rear secondary injector | 35.7 | 6195-0043 (DL090-2S-2) |  |  | B/Y is 18awg. B/Y splices off B/Y of X-05 |
| B1-15 | Front primary injector | 43.9 | 6195-0043 (DL090-2S-2) | |  | B/Y is 18awg. B/Y splices off B/Y of X-05 |
| B1-16 | Rear primary injector | 43 | 6195-0043 (DL090-2S-2) | |  | B/Y is 18awg. B/Y splices off B/Y of X-05 |
| B1-17 | Front secondary injector | 45.1 | 6195-0043 (DL090-2S-2) | |  | B/Y is 18awg. B/Y splices off B/Y of X-05 |
| B1-41 | Engine coolant temperature sensor | 44.7 | 178449-4, 184006-1 |  |  | BR/B splices off BR/B of X-05 |

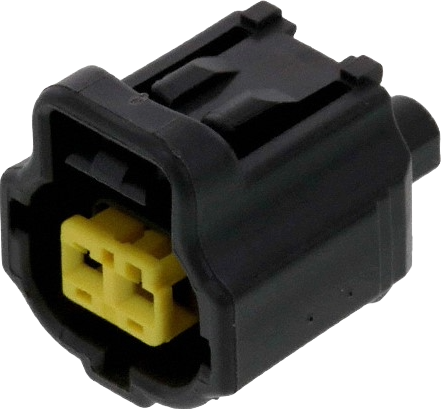

| B1-22 | Fuel thermosensor | 48.1 | 178449-6, 184006-2 |  |  | BR/B splices off BR/B of X-05 |

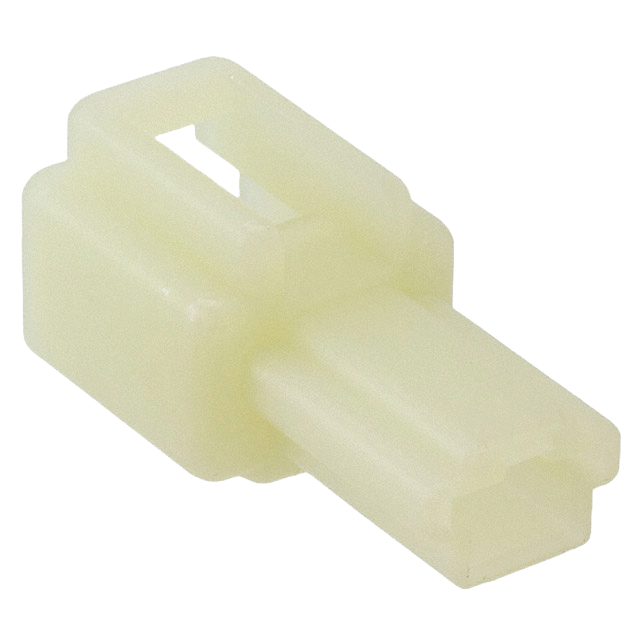

| C1-07 | Coolant level sensor | 16.2 | 172127 |  |  | |
| B1-07 | Air pump (magnetic clutch) | 49.1 | 6195-0006 | |  | B/G and B/L are 18awg |
| B1-46 | Knock sensor | 44 | 2822388, 174877 | |  | Shielded |

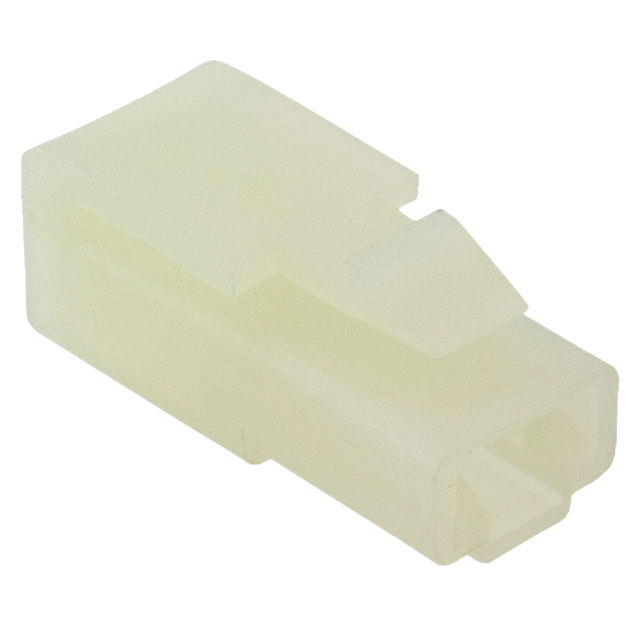

| C1-06 | Coolant level disconnect with (E) | 0 | 172128 |  |  | |
| B1-39 | Purge solenoid valve | 46.2 | 174352 | |  | B/W splices off B/W of X-05 |

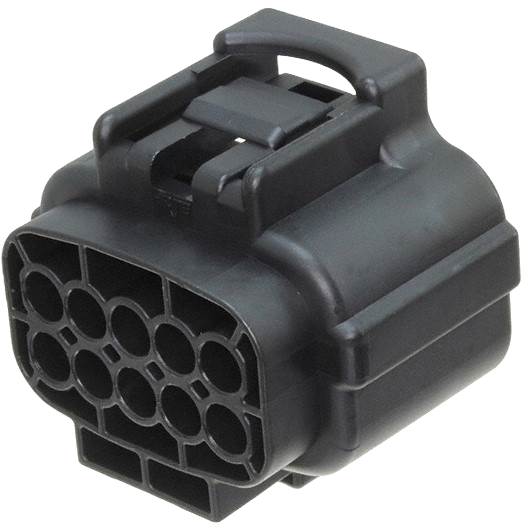

| B1-40 | Oil metering pump | 48 | 2822395, 174655 |  |  | BR/B & BR/W splice off B1-01; Both B/W splice off B/W of X-05 |
| B1-48 | Crank position sensor (G) | 49.4 | 6195-0003 | |  | Shielded |
| B1-49 | Crank position sensor (NE) | 49.2 | 6195-0003 | |  | Shielded |

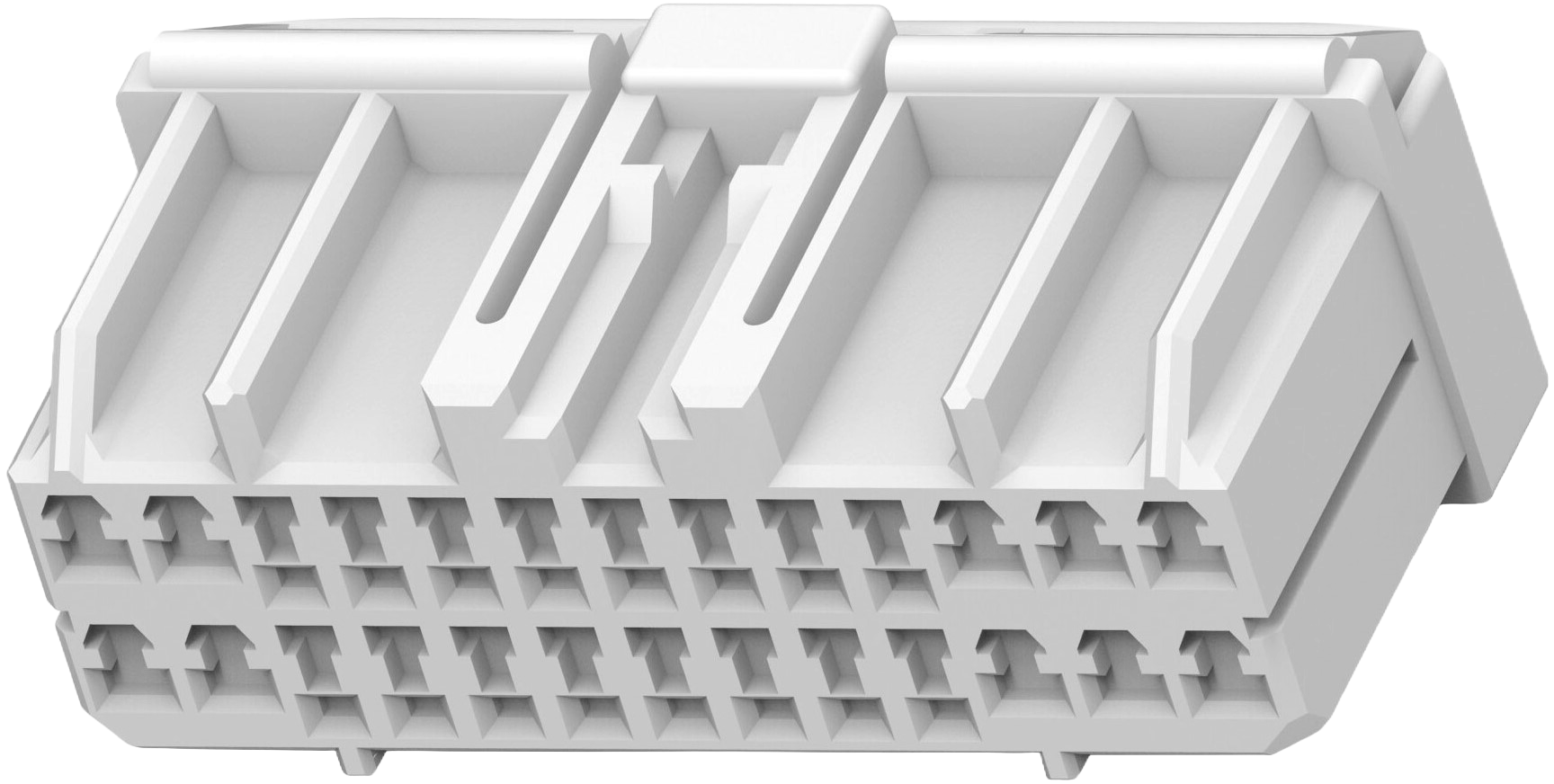

| B1-01 (26 pin) | ECU connector | 0 | 174516, 917992, 368136 |  | .png) | 4A, 4B and 4C are 18awg |

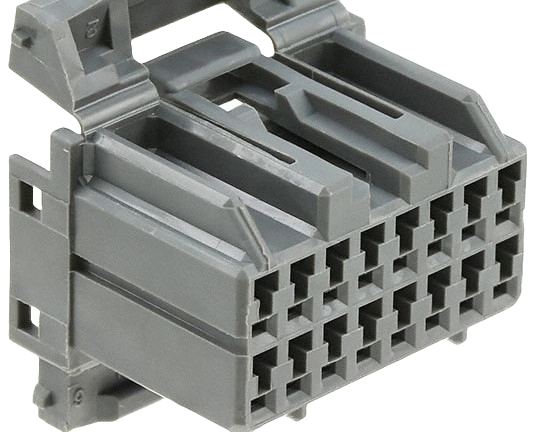

| B1-01 (16 pin) | ECU connector | 0 | 174514, 917981 |  | .png) |
